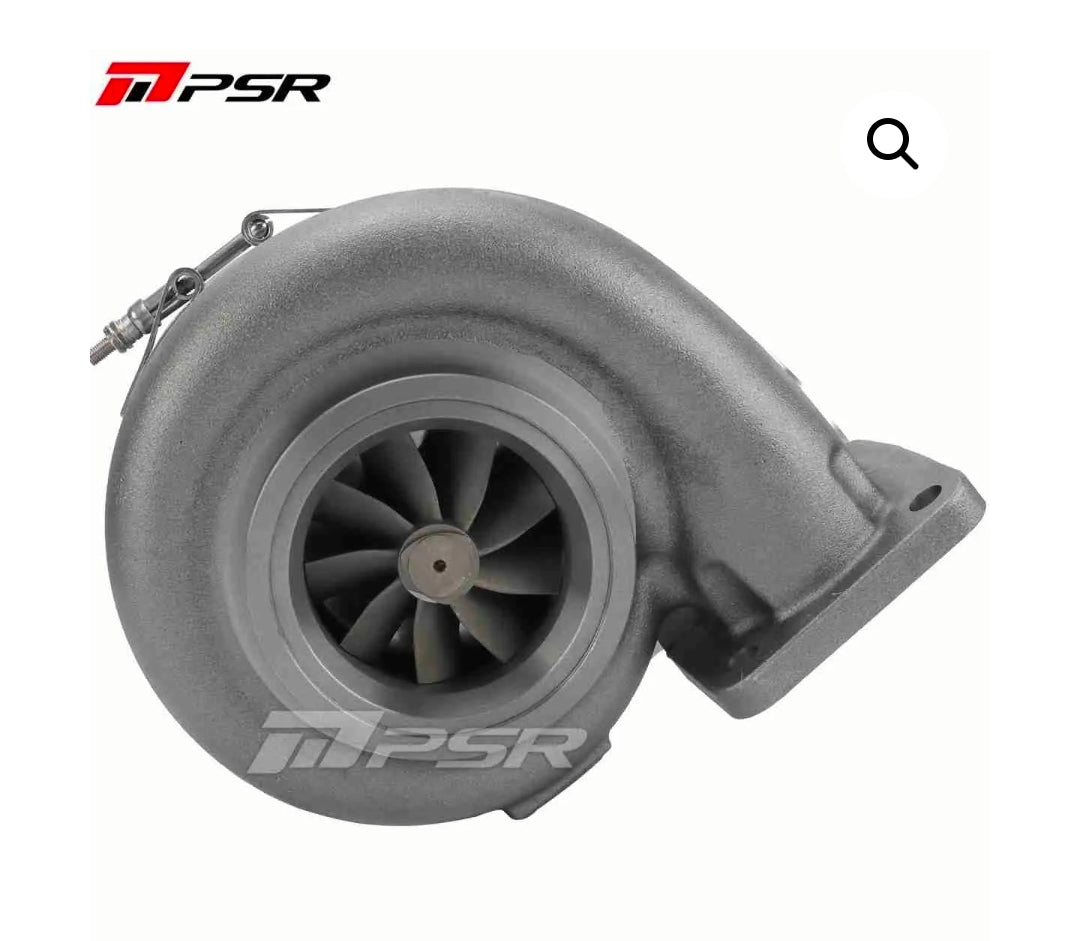

PSR7375 Dual Ball Bearing Turbo 1200HP

Compressor Wheel: 73*91mm

Turbine Wheel: 82*75mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 3″ hose

Turbine Inlet: 3″ V-Band, T4 divided or T4 open

Turbine Outlet: 3.5″ V-Band or 4″ V-Band

Water Ports: -6AN

Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange)

Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

Dual ceramic ball bearing system provides optimal turbo response &

better durability by reducing the shaft-motion

10 Blade G-Aero billet compressor wheel with extended tapered tip technology

9 Blade G-Aero Inconel 713c turbine wheel

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

8 Options in Turbine Housing

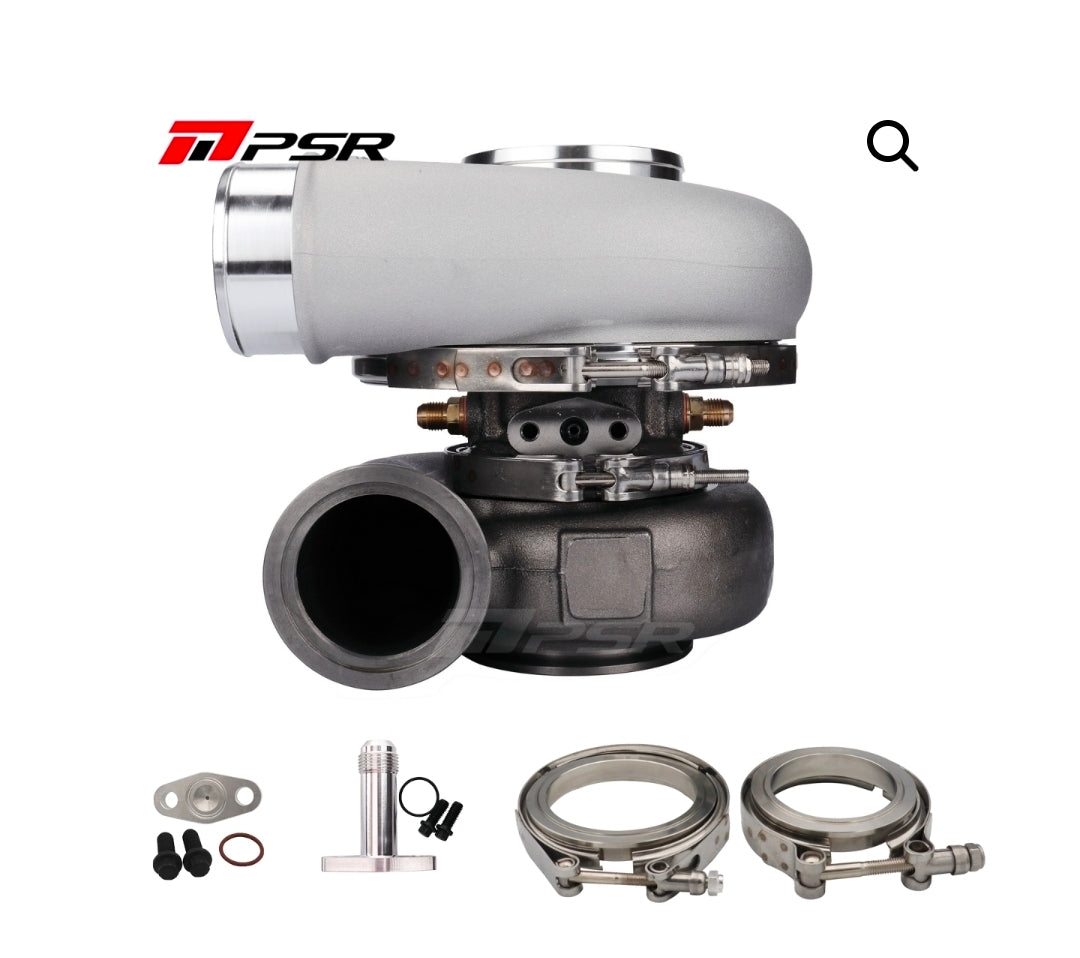

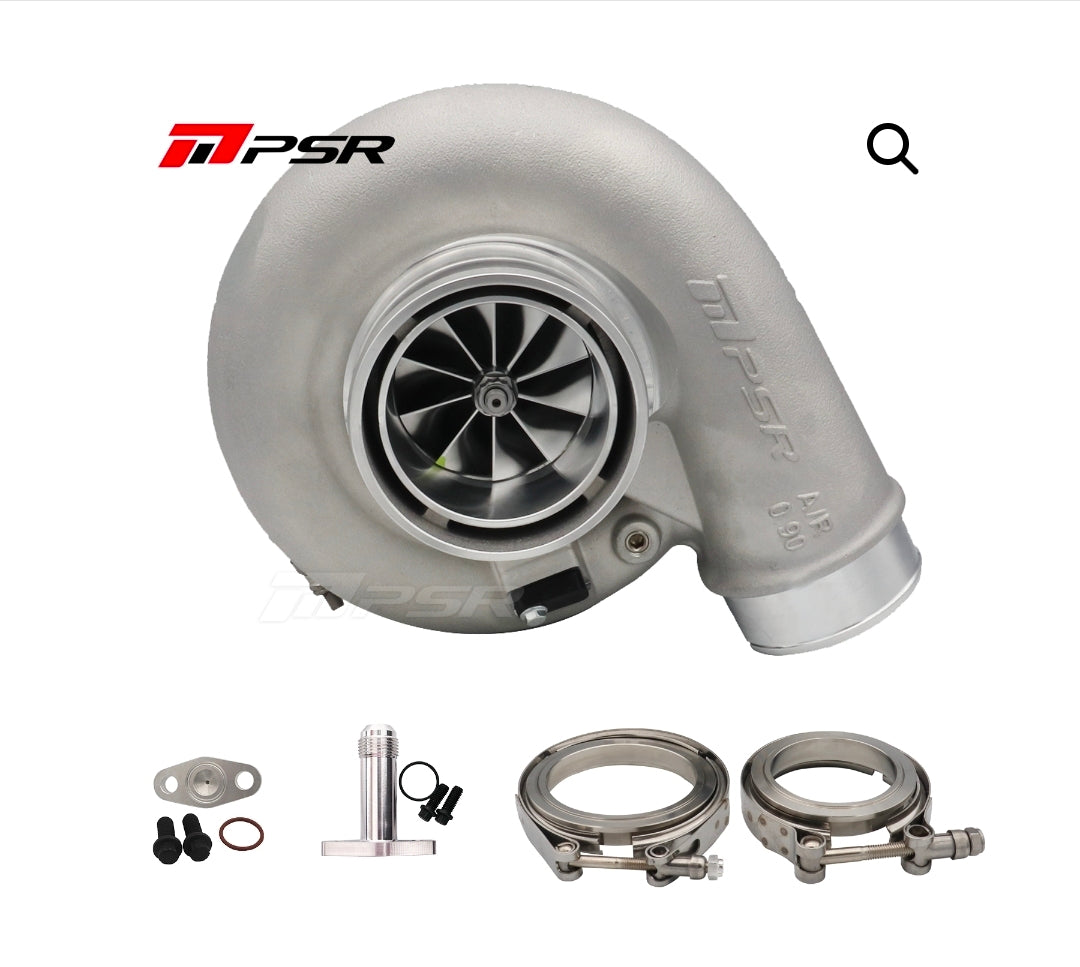

Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default

Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included
