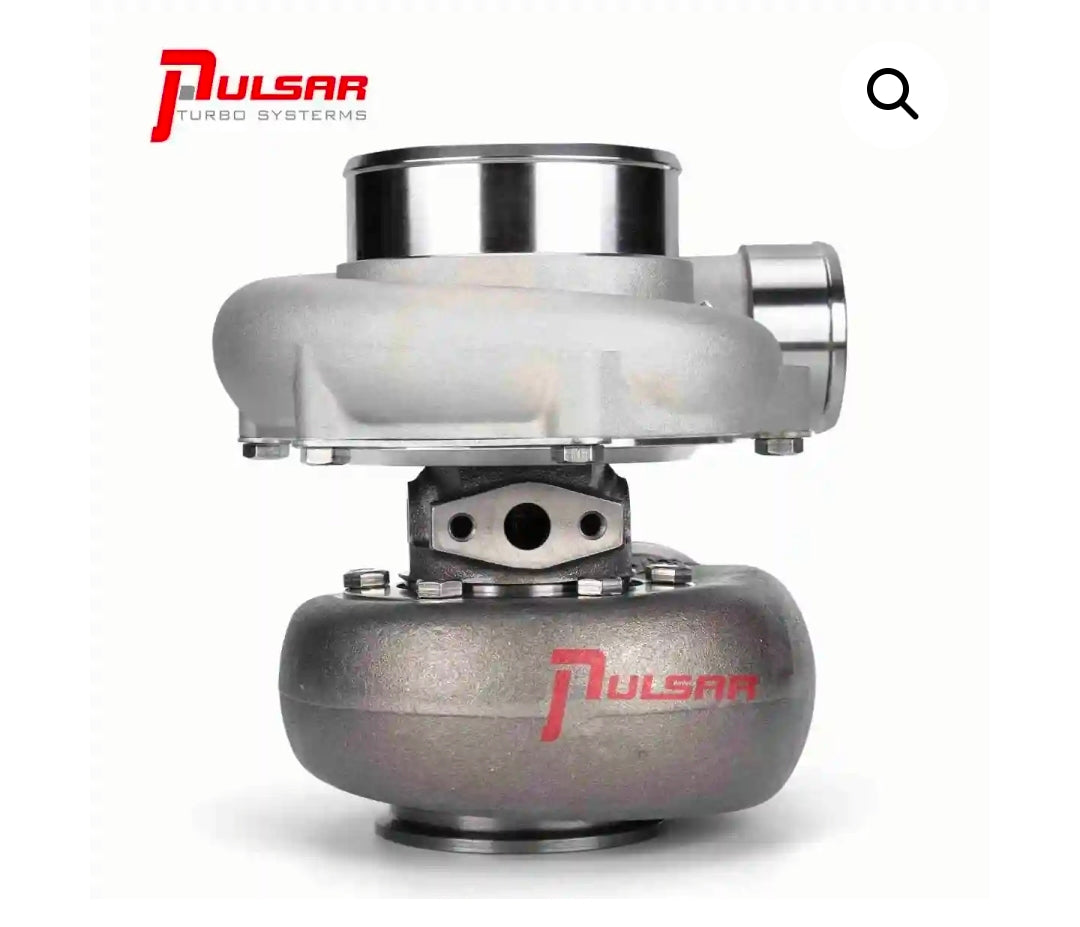

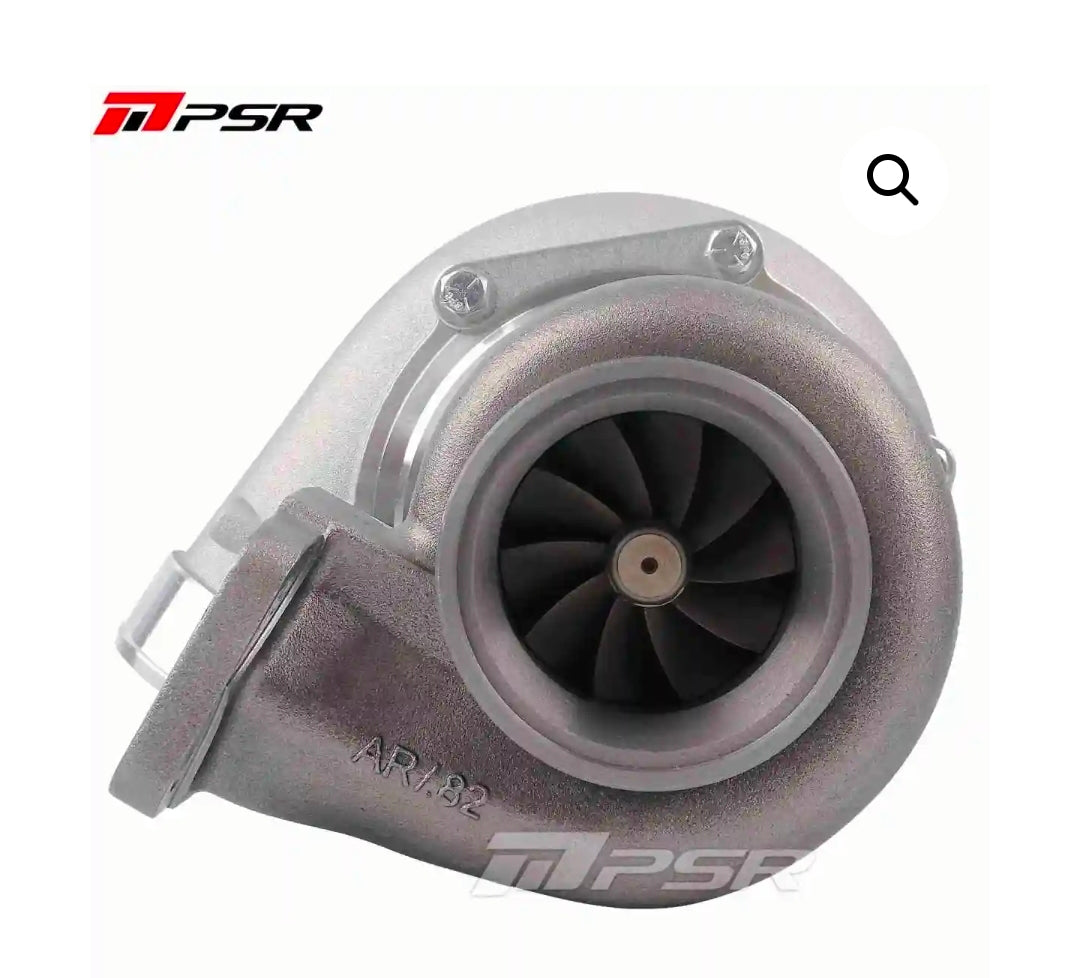

PSR 3582 Dual Ball Bearing

Dual Ceramic Ball Bearing System

10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

Inconel 713c Gen2 9 Blade Turbine Wheel

Gen2 Cover Integrated with the Speed Sensor Port

0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet etc. turbine housings in option

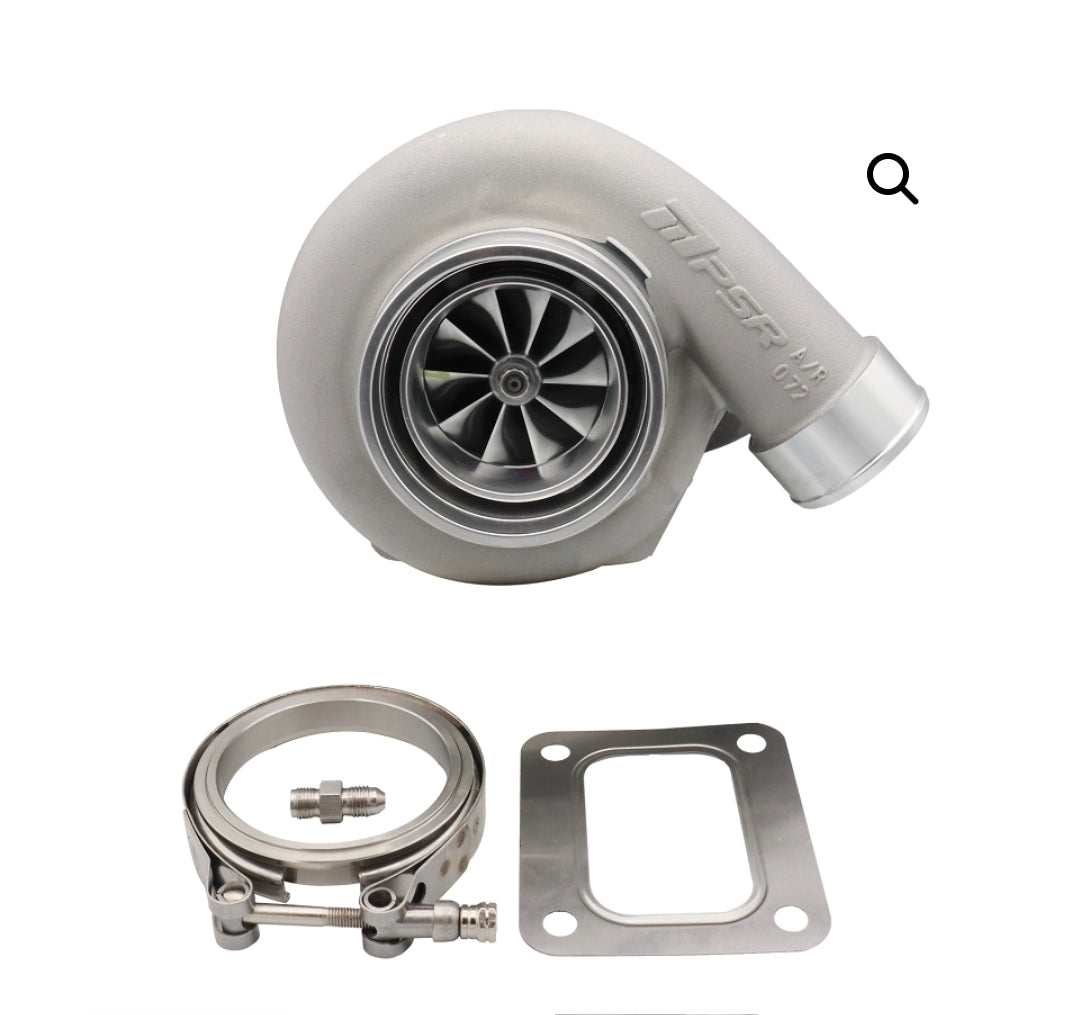

V-Band Flange kit(s) for the exhaust housing included

Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP

Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L

Compressor Wheel: 66*82mm

Turbine Wheel: 68*62mm

Compressor Inlet: 4.0 Hose

Compressor Outlet: 2.5 Hose

Turbine Inlet: T3, T4, or 2.5″ V-Band

Turbine Outlet: 3″ V-Band (3.55″OD)

Oil Feed: -4 AN connect to the Oil Restrictor

Oil Drain: Std T3 Flange

Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
