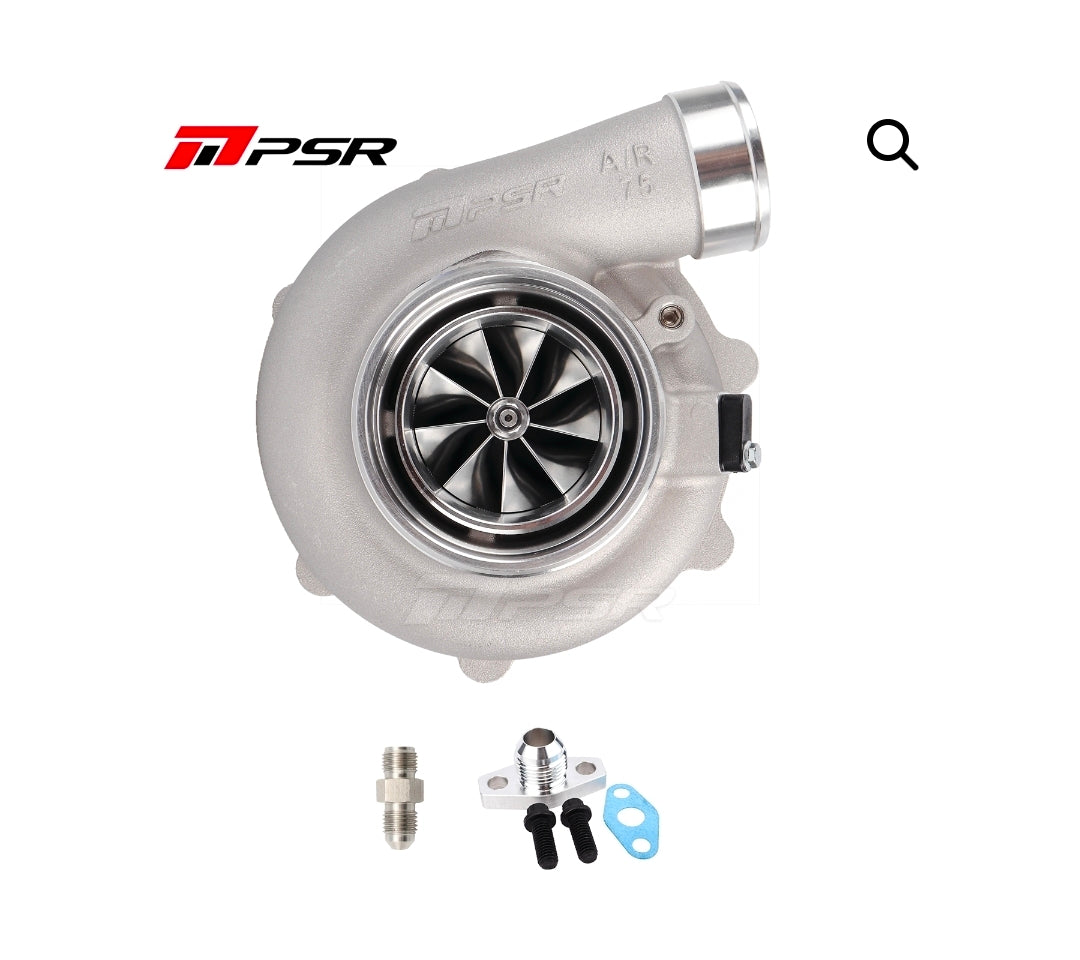

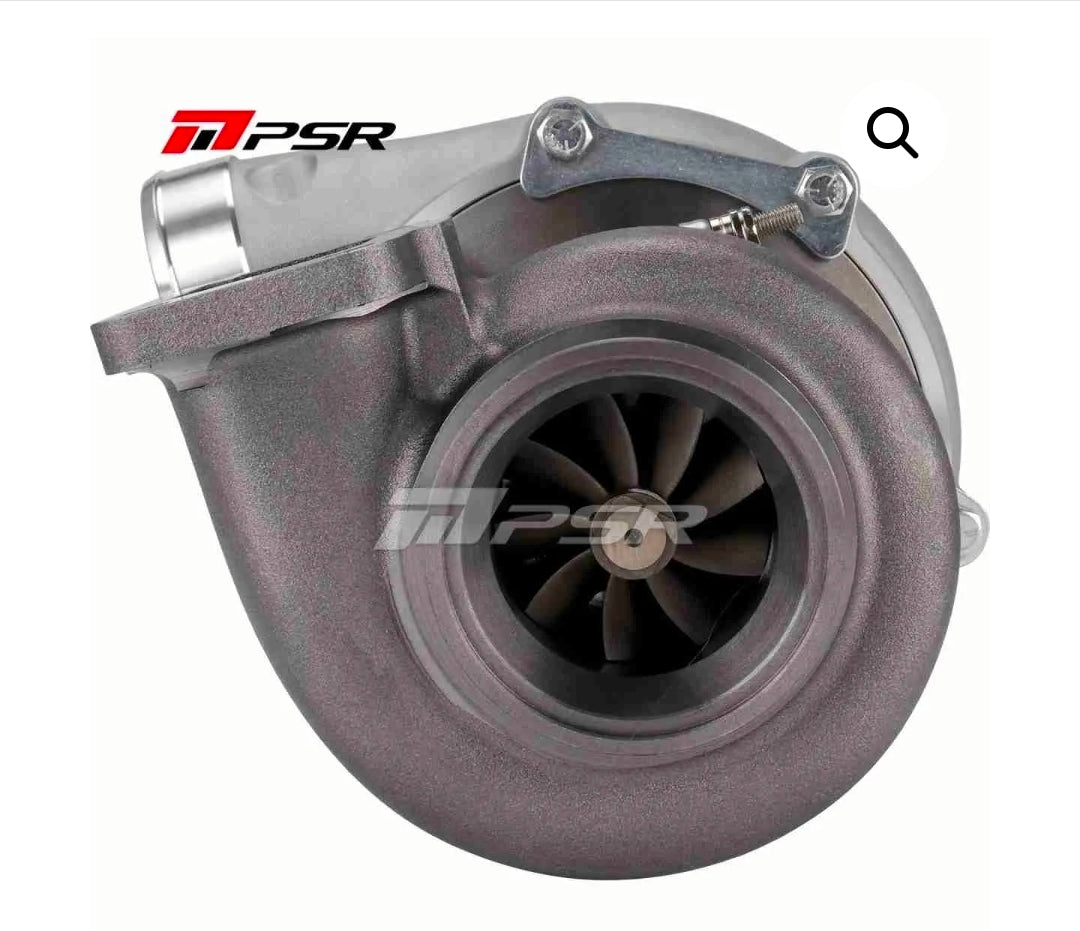

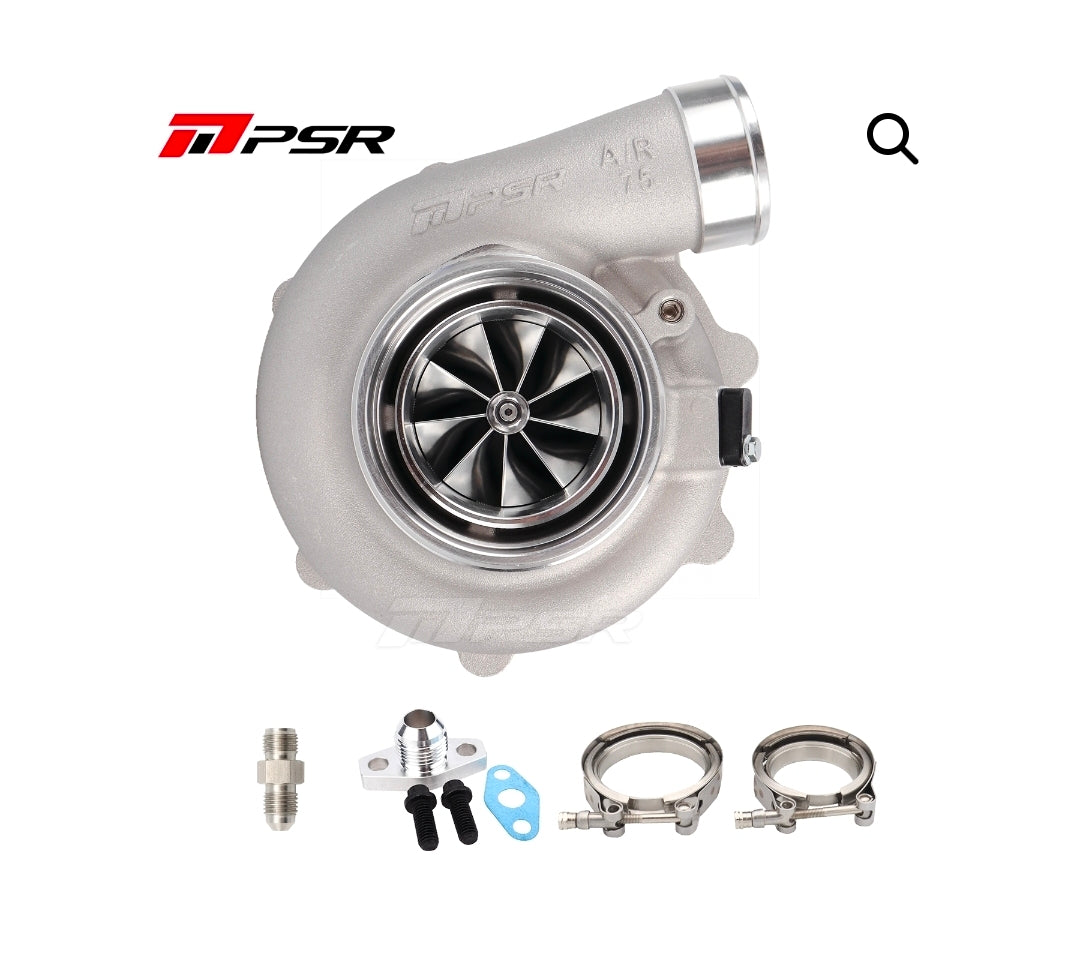

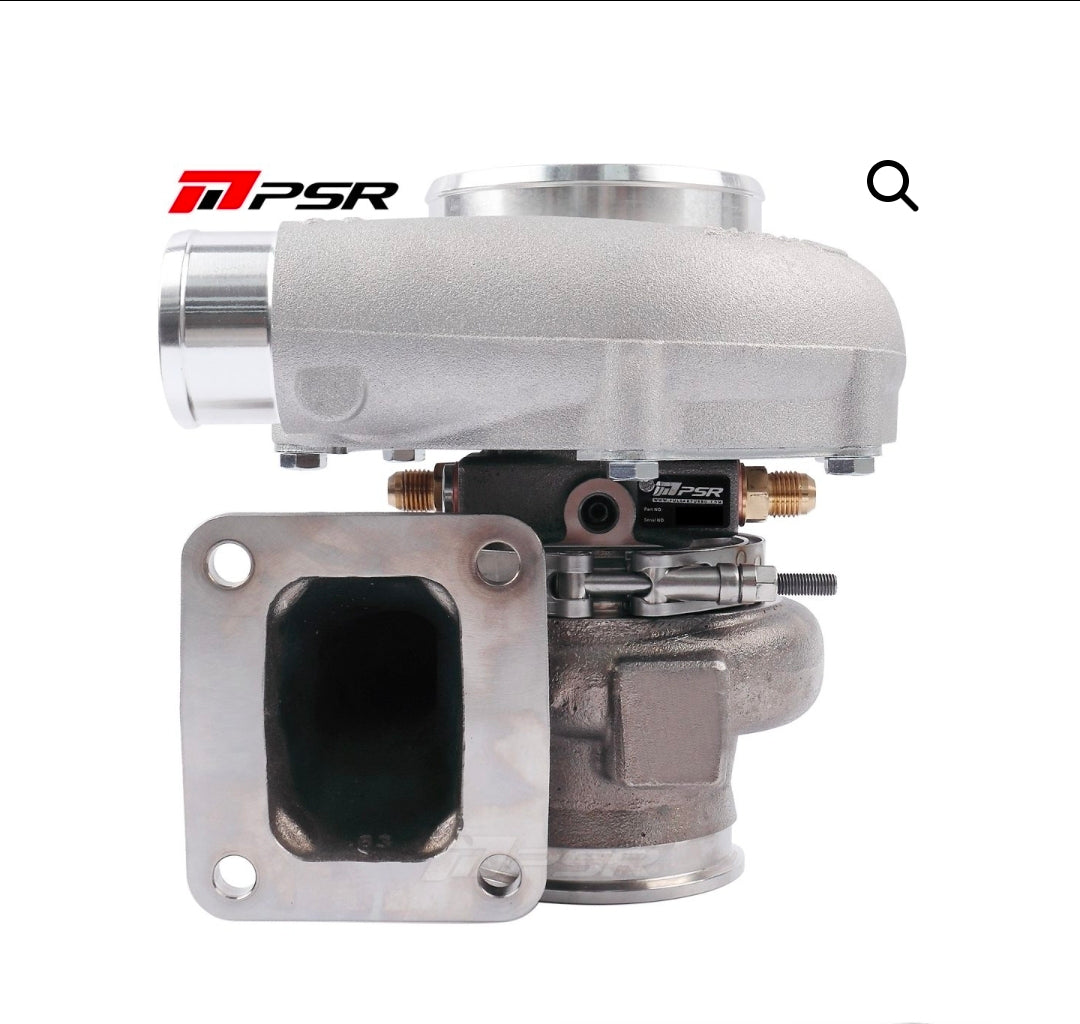

PSR6862 Dual Ball Bearing Turbo 800HP

Dual ceramic ball bearing system provides optimal turbo response &

better durability by reducing the shaft-motion

9 Blade G-Aero billet compressor wheel with extended tapered tip technology

9 Blade G-Aero Inconel 713c turbine wheel

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

1050 HP

Compressor Wheel: 68*84mm

Turbine Wheel: 68*62mm

Compressor Inlet: 4” Hose

Compressor Outlet: 2.5” Hose

Turbine Inlet: T4

Turbine Outlet: 3” V-Band

Water Ports: 2-M14 x 1.5

Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed

Oil Drain: Std T3

Turbine housing:

Dual vband 1.01A/R

T4 divided 0.85A/R
